ZXDELUXE - ZX81 clone computer building kit with SD drive

ZX81 retrocomputer with SD drive, joystick interface and 32K RAM

Euro 249.95 *Prices include VAT

Article code: KITZXDEL

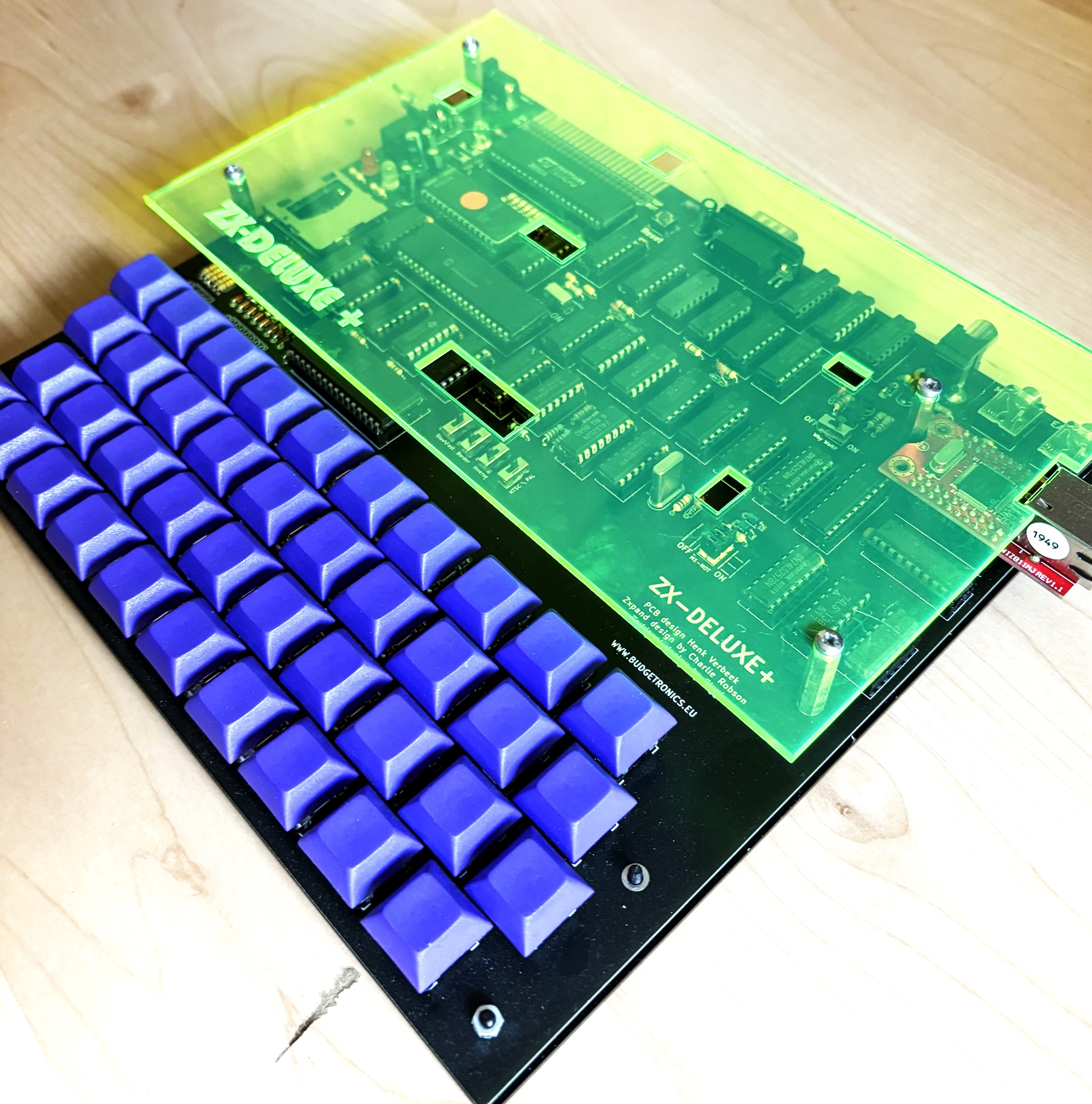

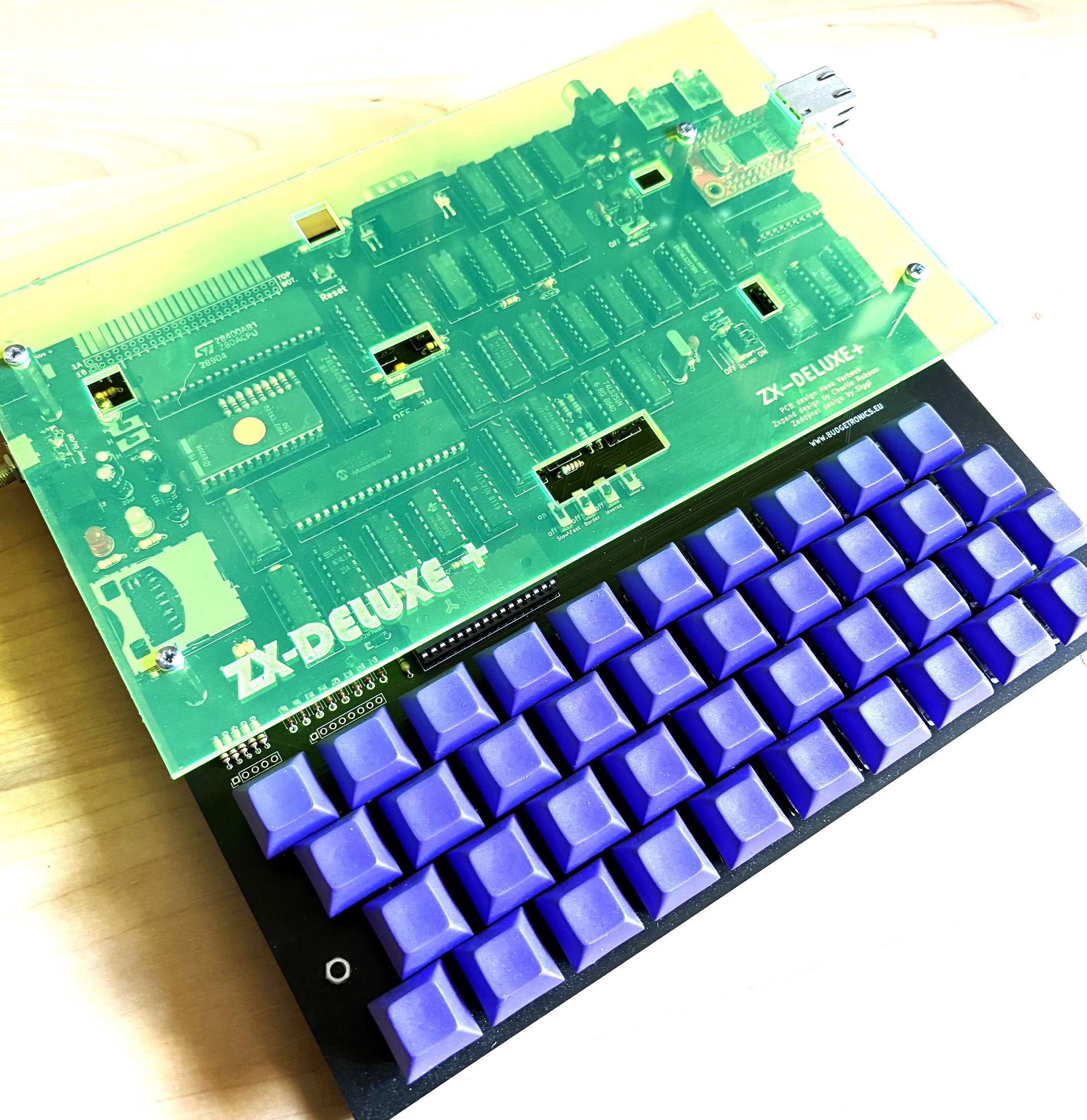

ZXDELUXE+ ZX81 retrocomputer already build and tested complete with enclosure.

Loads zx81 programs in seconds through the SD card interface.

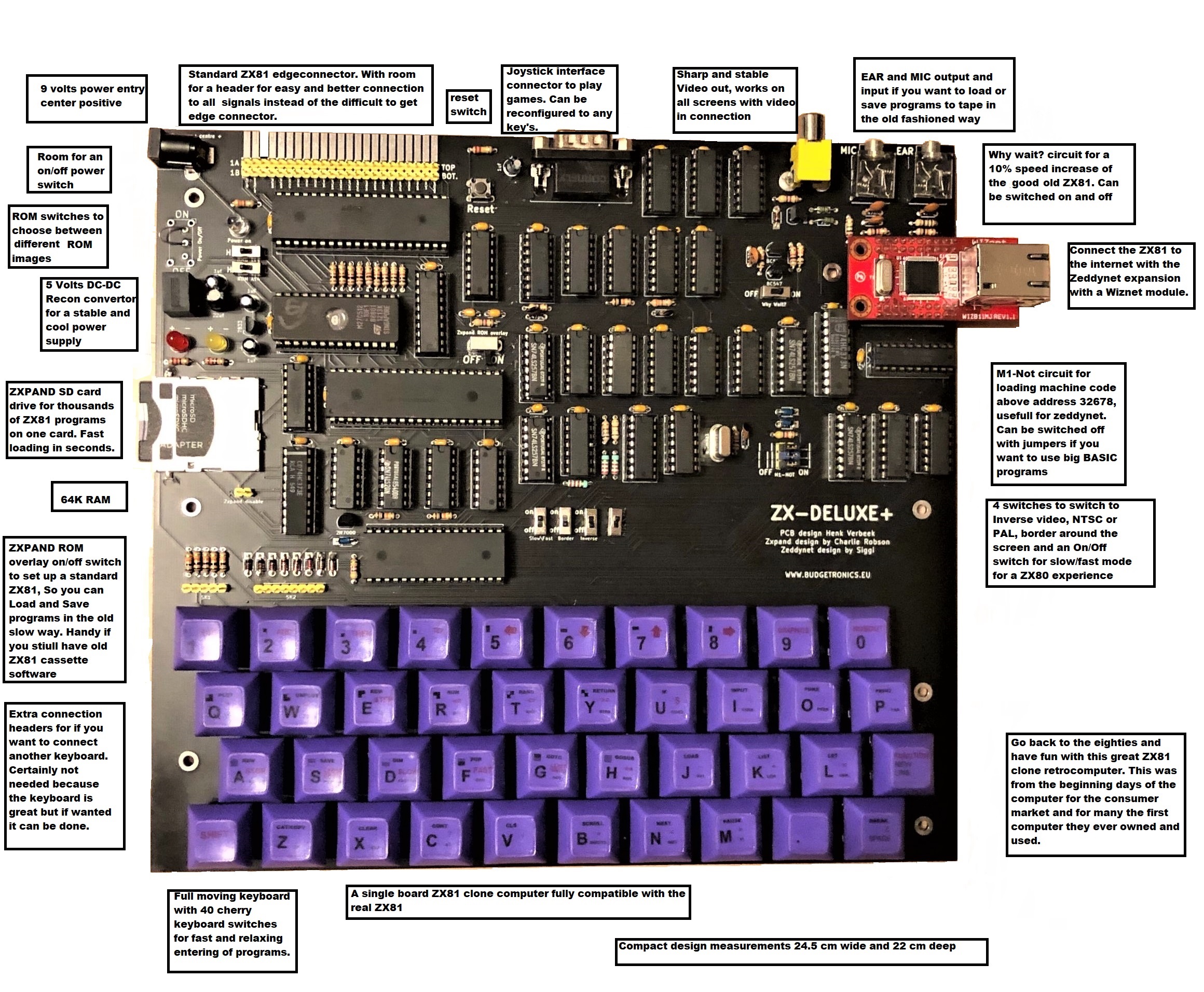

Specifications:

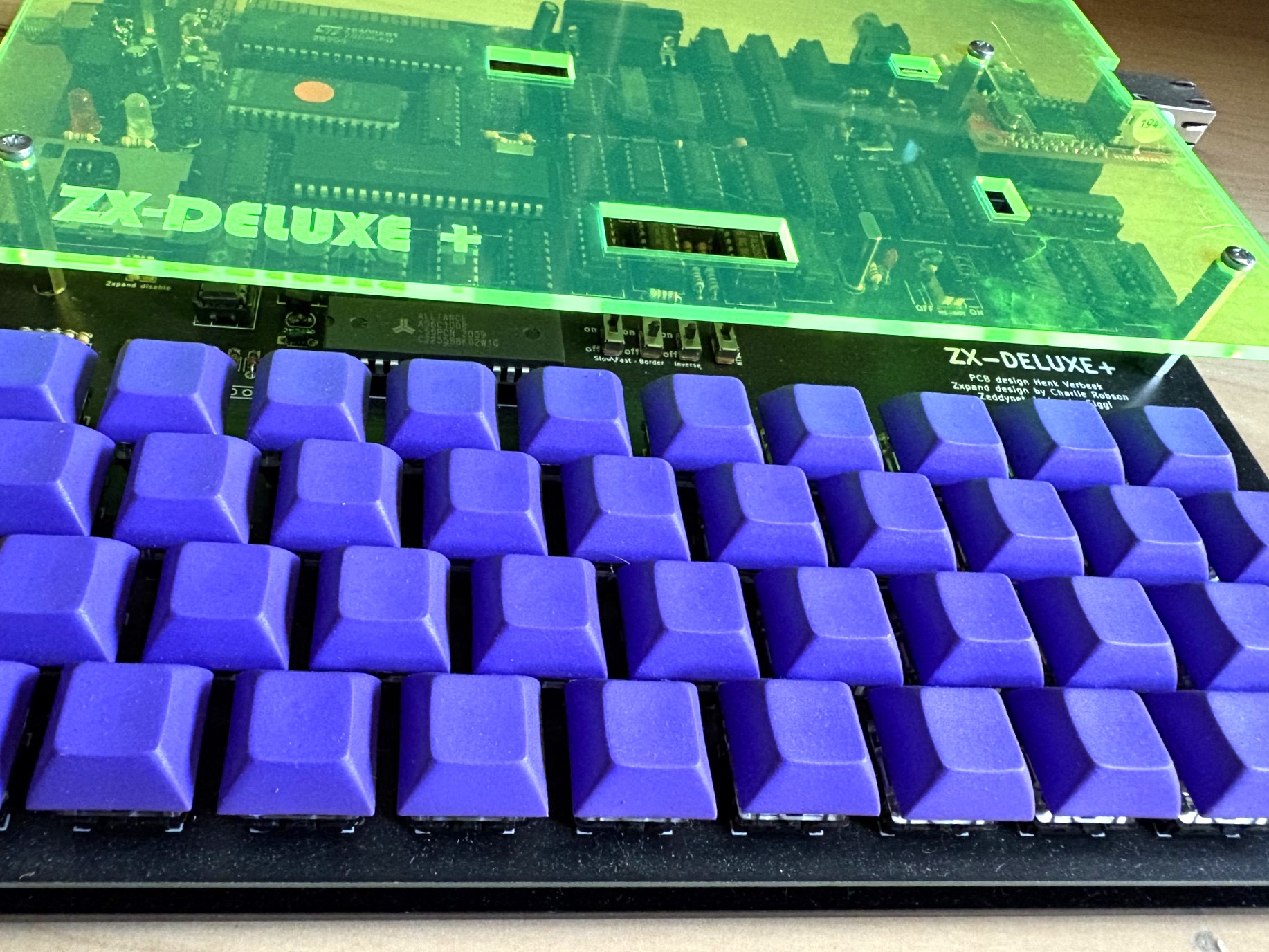

Integrated full moving keyboard with cherry keys [Blank keys without inscription of commands see photo's}.
Plexiglass enclosure [color can be differnet then pictured]
Compatible with the original ZX81.
Zxpand SD card drive.
Crisp and stable composite video out signal.
64K RAM.
ZX81 compatible edge connector.
Joystick interface that can be reconfigured to every key.

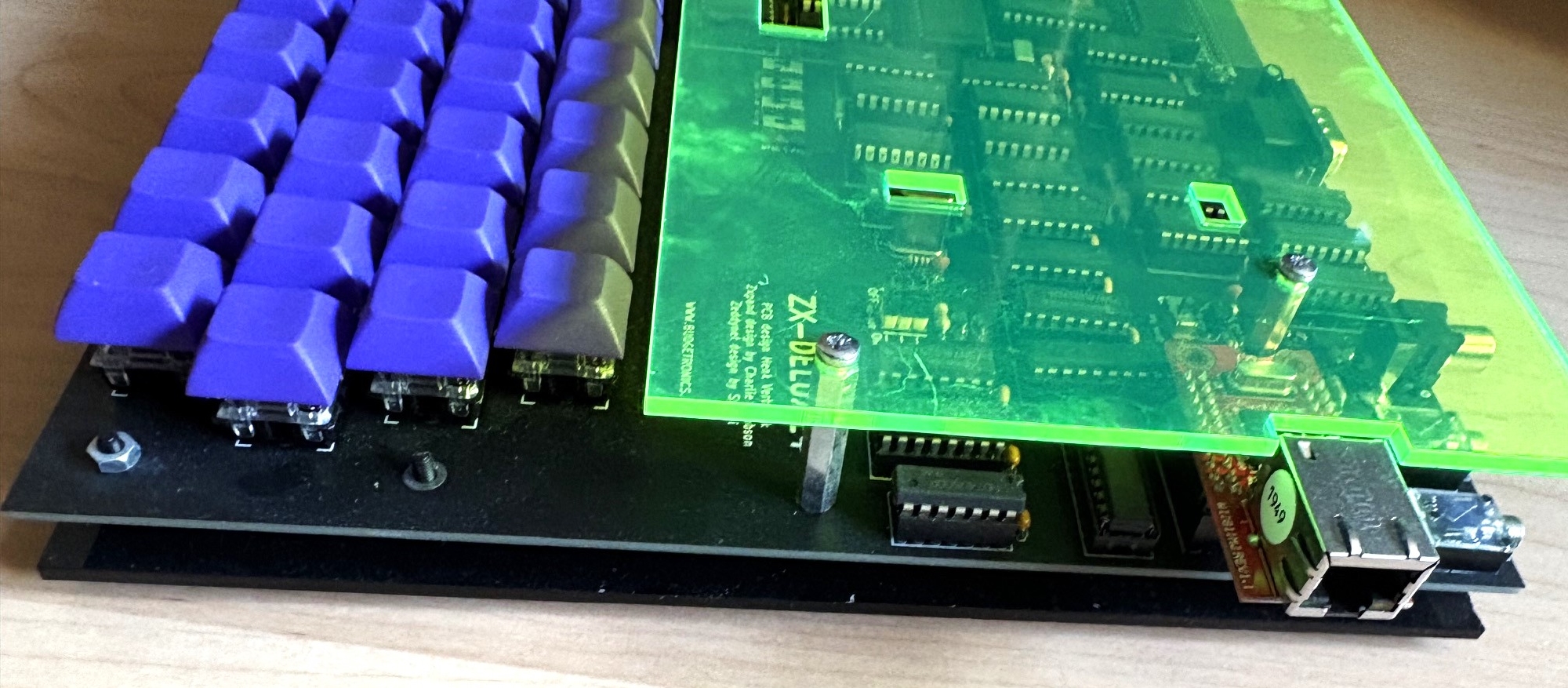

Internet interface Zeddynet with WIZ8121MJ module, included!
Why Wait? Circuit for 10% speed gain. Can be switched off.
M1-NOT circuit to load machine code above address 32768. Can be swiched off.
7 easy to adjust switches for inverse video, Border, NTSC/PAL, ROM selection and more.
Extra connection on PCB for connecting another keyboard, but why should you?

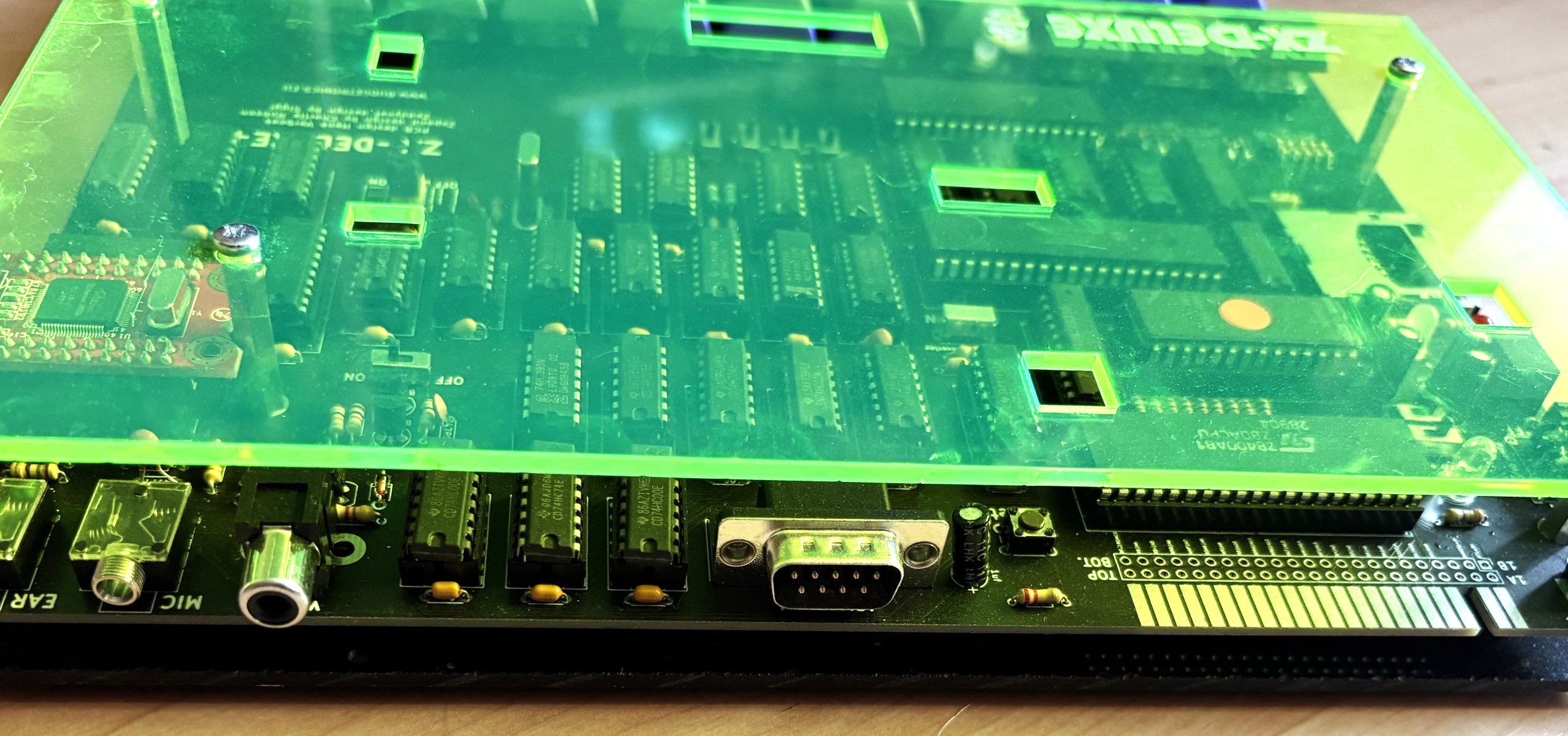

Ear and Mic input and output to load from tape cassette in standard ZX81 mode, if needed.
Reset switch
Power ON / OFF switch
Zxpand ROM overlay on/off switch to go to standard ZX81 mode or use the SD drive Save and Load routines.
ROM switch selectable between different ROM images zx80/zx81

Note:

This is a hand assembled computer and is only made available in very small quantities because it is a lot of work to assemble. As long as you can order it is still on stock. The color of the enclosure can be different from the photo's for the one you will receive.

You will need a power supply between 6 to 24 volts with center positive plug.

Manual ZXDELUXE+

Zeddynet files
