ASCII VT100 video terminal with VGA output for USB keyboard

ASCII VT100 video terminal with VGA output for USB keyboard
Euro 59.95 *Prices include VAT
Article code:  KIT308m

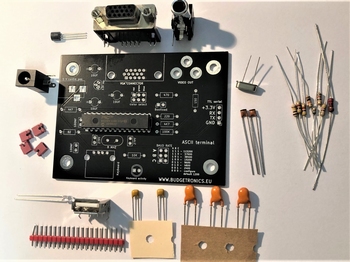

ASCII VT100 compatible video terminal building kit for USB keyboards. Ideal interface to connect your microcontroller with a VGA monitor (or a composite videomonitor) and a USB keyboard.

The building kit comes complete with all the needed parts and the already programmed microcontroller.

Specifications
  • Single chip ASCII video display terminal with VT100 and VT52 emulation
  • VGA or Composite Video output with automatic switch over. Composite can be PAL or NTSC.
  • VGA can display 24 lines x 80 characters or an extended resolution of 36 lines x 80 characters
  • Composite video can display 18 lines x 48 characters (PAL) or 15 lines x 44 characters (NTSC)
  • USB keyboard input with support for standard US keyboard layout or French, German, Italian, Belgian, Russian or United Kingdom keyboard layouts
  • TTL or RS232 serial input/output. Baud rates from 40 to 1,000,000 bits per second with odd, even or no parity and one or two stop bits
  • Extended VT100 terminal emulation. Extensions include graphics codes for drawing lines, boxes and circles (which can be hollow or filled)
  • Graphics resolution is 480x288 pixels in VGA 25 line mode, 480x432 pixels in VGA 36 line mode, 288x216 in PAL composite and 264x180 pixels in NTSC composite mode
  • Three built in fonts (standard, large and jumbo) and four character attributes (normal, underline, reverse and invisible)
  • Power requirement is 5V at 50mA plus any current drawn from the 3.3V pin on the serial connector

Op voorraad / on stock
ASCII VT100 compatible video terminal for USB keyboards. Ideal interface to connect your microcontroller with a VGA monitor (or a composite videomonitor) and a USB keyboard.

The building kit comes complete with all the needed parts and the already programmed microcontroller.
Specifications
Single chip ASCII video display terminal with VT100 and VT52 emulation
VGA or Composite Video output with automatic switch over. Composite can be PAL or NTSC.
VGA can display 24 lines x 80 characters or an extended resolution of 36 lines x 80 characters
Composite video can display 18 lines x 48 characters (PAL) or 15 lines x 44 characters (NTSC)
USB keyboard input with support for standard US keyboard layout or French, German, Italian, Belgian, Russian or United Kingdom keyboard layouts
TTL or RS232 serial input/output. Baud rates from 40 to 1,000,000 bits per second with odd, even or no parity and one or two stop bits
Extended VT100 terminal emulation. Extensions include graphics codes for drawing lines, boxes and circles (which can be hollow or filled)
Graphics resolution is 480x288 pixels in VGA 25 line mode, 480x432 pixels in VGA 36 line mode, 288x216 in PAL composite and 264x180 pixels in NTSC composite mode
Three built in fonts (standard, large and jumbo) and four character attributes (normal, underline, reverse and invisible)
Power requirement is 5V at 50mA plus any current drawn from the 3.3V pin on the serial connector
